Klipsch Reference 5.1.2 + Onkyo TX-NR6100 / Dolby-Atmos-Set

• 5.1.2 Dolby-Atmos Surround System
• 10 Zoll Subwoofer
• Cera-Metallic-Technologie
• Magnetische Stoffabdeckung
• ONKYO - AV-Receiver - TX-NR6100

Klipsch RP-5000F II:

FREQUENCY RESPONSE 40-25kHz +/- 3dB
SENSITIVITY* 95dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) 100W / 400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1900Hz
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5.25" Cerametallic Cone Woofers with Faraday
rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Bass Reflex via dual chamber rear-firing Tractrix® Ports
INPUTS Dual aluminum binding posts / bi-wire / bi-amp with
Dolby Atmos® passthrough
HÖHE (91.7 cm)
BREITE (20.7 cm)
TIEFE (37.5 cm)
GEWICHT (17.55kg)
FINISH Ebony, Walnut

Klipsch RP-500C:

FREQUENCY RESPONSE 56-25kHz +/- 3dB
SENSITIVITY* 94dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1630Hz
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5.25" Cerametallic™ Cone Woofers with Faraday rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS Single aluminum binding posts
HÖHE (17.4 cm)
BREITE (49.1 cm)
TIEFE (26.9 cm)  / GEWICHT (8.30kg)
FINISH Ebony, Walnut
ACCESSORIES Angle screw

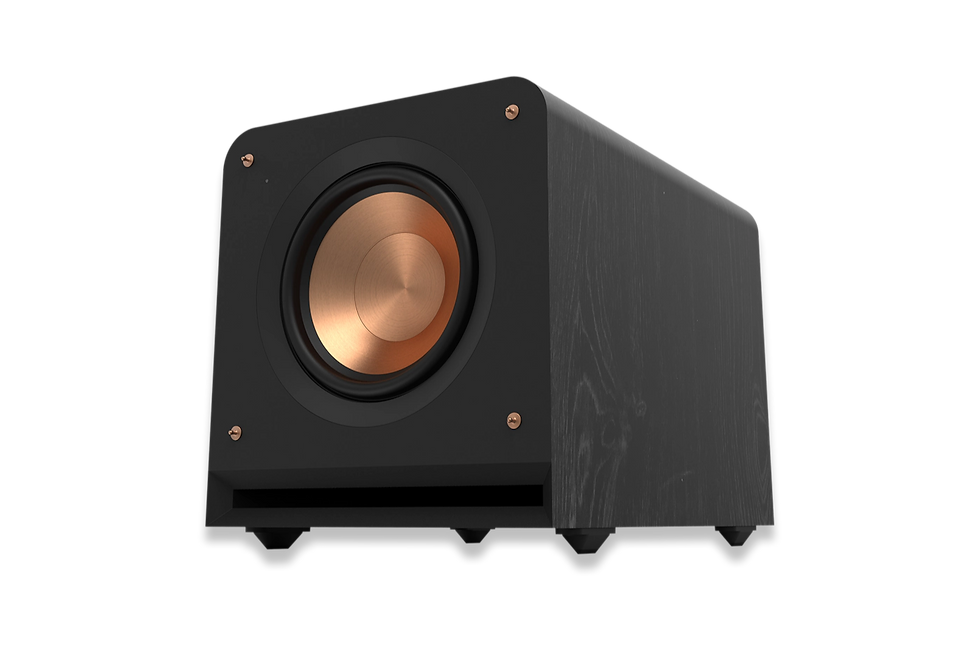

Klipsch RP-1000SW:

FREQUENCY RESPONSE 19Hz - 131Hz +/- 3dB
MAXIMUM ACOUSTIC OUTPUT 118.5dB
AMPLIFIER TYPE Class D with Analog Preamp Stage
AMPLIFIER POWER 300W RMS / 600W Peak
WOOFER 10" Ultra Long Throw Cerametallic
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass Reflex via Front-Firing Aerofoil Slot Port
INPUTS Dual RCA/LFE Line In, WA-2 Wireless Port
HÖHE  (42.3 cm)
BREITE (38.1 cm)
TIEFE " (63.4 cm)
GEWICHT (25.7 kg)
FINISH Ebony Vinyl

Klipsch RP-500M II :

FREQUENCY RESPONSE 50-25kHz +/- 3dB
SENSITIVITY* 92dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) 75W/300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1530Hz
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER 5.25" Cerametallic Cone Woofer with Faraday rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS Single aluminum binding posts
HÖHE   (34.4 cm)
BREITE (17.3 cm)
TIEFE     (27.0 cm)
GEWICHT (5.95kg)
FINISH Ebony, Walnut

Klipsch RP-500SA:

FREQUENCY RESPONSE Conforms to Dolby Atmos Specifications
SENSITIVITY* Conforms to Dolby Atmos Specifications
POWER HANDLING (CONT/PEAK) 75W / 300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY Conforms to Dolby Atmos Specifications
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER 5.25" Cerametallic Cone Woofer with Faraday rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Sealed
INPUTS Single Binding Posts
HÖHE    (21.7 cm)
BREITE  (17.3 cm)
TIEFE     (32.0 cm)
GEWICHT (4.35kg)
FINISH Ebony, Walnut
INCLUDED ACCESSORIES Rubber Feet (8), Dolby Atmos jumpers (2) for use with
Reference Premiere floorstanding speakers

ONKYO TX-NR6100:

Amplifier Section
Power output (All channels)

210 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
100 W/Ch (8 ohms, 20 Hz–20 kHz,
0.08% THD, 2-ch driven, FTC)
Dynamic power 240 W (3 ohms, Front) 210 W (4 ohms, Front)
120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line)
3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out)
200 mV rms/2.2 k-ohms
(Zone 2/Zone B line-out)
Frequency response 10 Hz–100 kHz/+1 dB,
-3 dB (Direct/Pure Audio)
Tone control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance 4–16 ohms
Tuner Section
Tuning frequency range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 stations
General
Power supply AC 120 V~, 60 Hz
Power consumption (operating) 635 W
Power consumption (idle) 65 W
Power consumption (standby) 0.1 W
Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝
(435 x 173.5 x 379.5 mm)
Weight  (9.8 kg)















HIGHLIGHTS:
TX-NR6100 7.2-Channel THX Certified Network A/V Receiver
Massive THX® sound and filmlike 8K resolution
Building key noise-reduction refinements into THX® Certified Select high-current amplification, the TX-NR6100 sets the bar for reference sound while
bringing 8K/60p and HDR10+ video to your compatible display over HDMI®. Enjoy Dolby Atmos® and DTS:X® soundtracks through your height-enabled
surround system or use upmixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout. Cue and control music
around your home with voice assistants Hey Google or Alexa, and connect a second display via HDMI Sub/Zone 2 output. Chromecast built-in™,
AirPlay 2, DTS Play-Fi®, and Works with Sonos cover every multi-room situation, and if you connect passive loudspeakers, you can switch between a
7.2/5.2.2-ch and 5.2-ch + Zone 2 layout at the touch of a button thanks to dedicated Zone 2 speaker terminals. Features such as a quality MM phono
equalizer and bi-directional Bluetooth® wireless technology make this value proposition even more persuasive.
• 210 W/Ch THX® Certified Select DAA system
• 5.2.2-ch Dolby Atmos® and DTS:X® playback
• SMART AV Receiver™ Works with Sonos*1,
Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes
Spotify®, Amazon Music HD*2, Pandora®, TIDAL, Deezer,
and TuneIn streaming services*3
• Works with Hey Google or Alexa*4
• Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting
the 802.11ac standard*5
• HDMI® inputs 1-3 and Main/Sub outpus support
8K/60p(4:2:0/10-bit), 8K/30p(4:4:4/10-bit),
4K/120p(4:4:4/10-bit) video pass through
• HDMI terminals*6 support HDR10+, Dolby Vision and
BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto
Low Latency Mode), and QFT (Quick Frame Transport)
passthrough; eARC (Main Out), and HDCP 2.3
• HDMI Sub/Zone 2 Out for media transmission to a
projector, gaming monitor, or TV
• Send or receive audio via Bluetooth® wireless technology
(RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/
aptX HD)
• Refined chassis, HDMI board, DAC, Digital/Analog inputs,
power-amp grounds and power lines
• Dedicated Zone 2 speaker posts for powered
D/A audio distribution (including HDMI/SPDIF/NET*7) to
passive speakers
• Zone 2/Zone B line-out (analog RCA) with Zone 2 DAC
supports independent or synced D/A playback (including
HDMI/SPDIF/NET*6) on compatible audio systems
• AccuEQ with AccuReflex™ and subwoofer EQ
